How to Build a Drone from Scratch: A Complete Step-by-Step Guide

Learn how to build a drone from scratch with this detailed guide. Discover essential components, step-by-step assembly instructions, and tips for calibration, troubleshooting, and upgrades. Perfect for hobbyists and tech enthusiasts!

Introduction

Building a drone from scratch is a rewarding project for tech enthusiasts, hobbyists, and anyone passionate about flying machines. Not only does it allow you to understand the inner workings of drones, but it also gives you the flexibility to customise your creation to suit your specific needs. This guide will walk you through every step of the process, from gathering materials to troubleshooting your finished product.

Why Build a Drone from Scratch?

Building a drone from scratch offers a multitude of advantages that cater to both hobbyists and professionals. One of the key motivations is the growing popularity of drones across various sectors, such as photography, delivery, agriculture, and entertainment. Creating your own drone allows you to explore these applications and gain a deeper understanding of how they work.

Additionally, the process of designing and assembling a drone enhances your technical skills in areas like electronics, programming, and aerodynamics. It also serves as an excellent foundation for pursuing advanced projects or even a career in robotics and engineering.

Beyond practical benefits, building a drone fosters creativity and problem-solving, as you have the freedom to experiment with unique designs and configurations tailored to your specific needs. Overall, it’s a rewarding endeavor that combines learning, innovation, and fun.

Benefits of Building Your Own Drone

  1. Customization: Building a drone allows you to tailor its features to your needs, whether for aerial photography, racing, or simply recreational flying.
  2. Cost-Effectiveness: While ready-made drones can be expensive, building one from scratch can save money and provide better value for your investment.
  3. Learning Opportunity: The process helps you understand drone mechanics, electronics, and aerodynamics, enhancing your technical skills.
  4. Sense of Achievement: Successfully assembling and flying your own drone is a deeply satisfying experience.

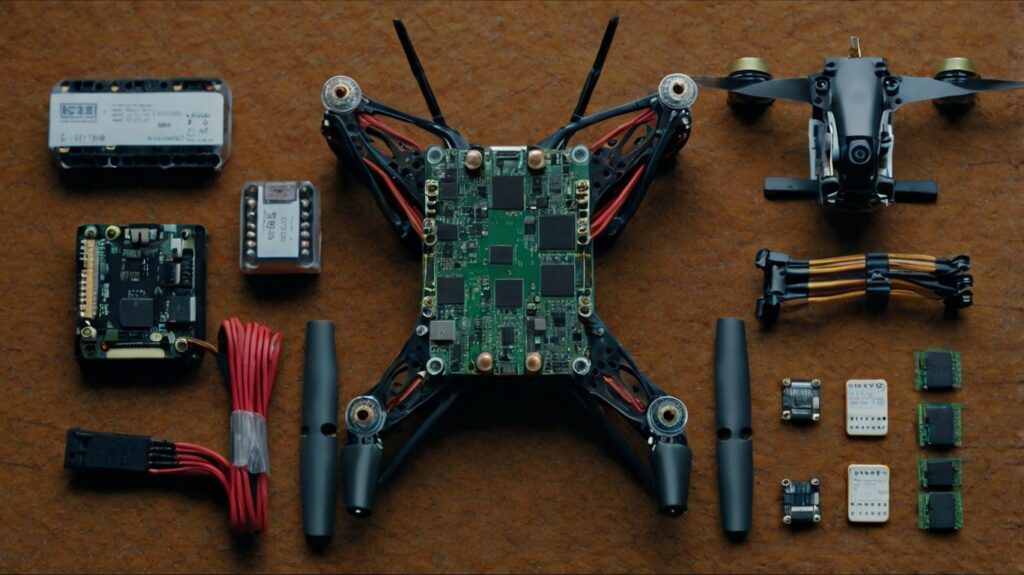

Drone Components

A drone is a combination of various interconnected components. Below is a table summarizing the key parts:

ComponentPurpose
FrameProvides structure and holds all components together
MotorsGenerate thrust to lift the drone
Electronic Speed Controllers (ESCs)Control motor speed and direction
PropellersConvert motor energy into lift and thrust
Flight ControllerActs as the brain, stabilizing and controlling the drone
BatteryProvides power to all components
Power Distribution Board (PDB)Distributes power from the battery to various parts
Remote Control and ReceiverAllow you to control the drone from a distance
GPS and Sensors (Optional)Enhance navigation and stability

How Each Component Works Together

The frame holds everything together while the motors, controlled by ESCs, provide the thrust needed for flight. The flight controller processes input from the remote control and sensors, stabilizing the drone. Power is supplied via the battery and distributed through the PDB.

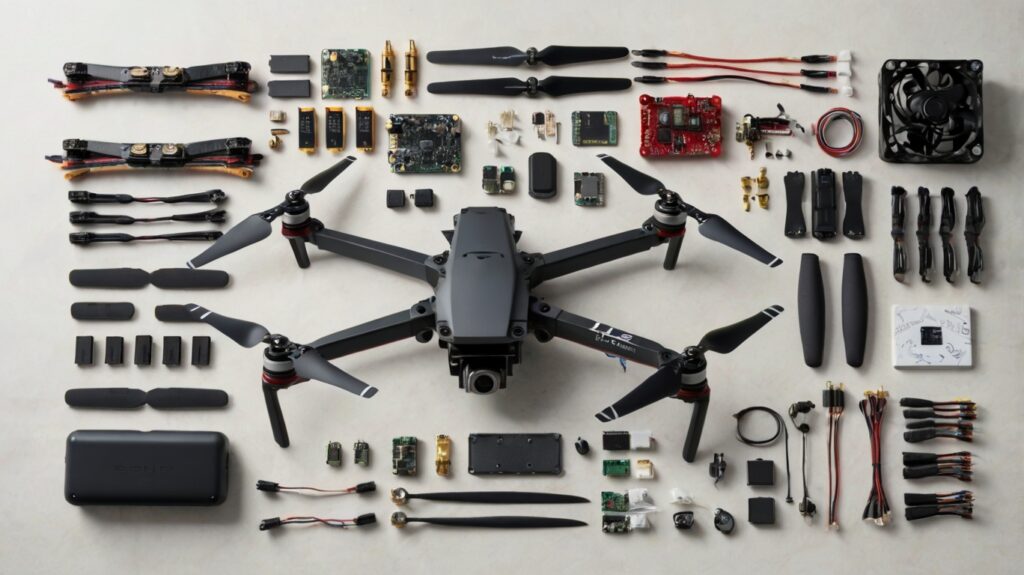

Gathering Materials and Tools

List of Components Needed:

  • Drone frame (450mm or size suitable for your purpose)
  • Brushless motors (x4 for a quadcopter)
  • ESCs (Electronic Speed Controllers, one per motor)
  • Propellers (matching motor specifications)
  • Flight controller (e.g., Pixhawk, KK2, or Betaflight)
  • Battery (e.g., LiPo 3S or 4S)
  • PDB (Power Distribution Board)
  • Remote control transmitter and receiver
  • Miscellaneous: screws, zip ties, soldering wire, connectors

For a detailed guide on selecting the best parts for your high-performance drone, check out High-Performance DIY Drone: A Technical Guide to Choosing the Best Parts.

Tools Required for Assembly:

  • Soldering iron
  • Screwdrivers (precision set)
  • Multimeter
  • Wire cutters and strippers
  • Heat shrink tubing
  • Double-sided tape

Step-by-Step Assembly Guide

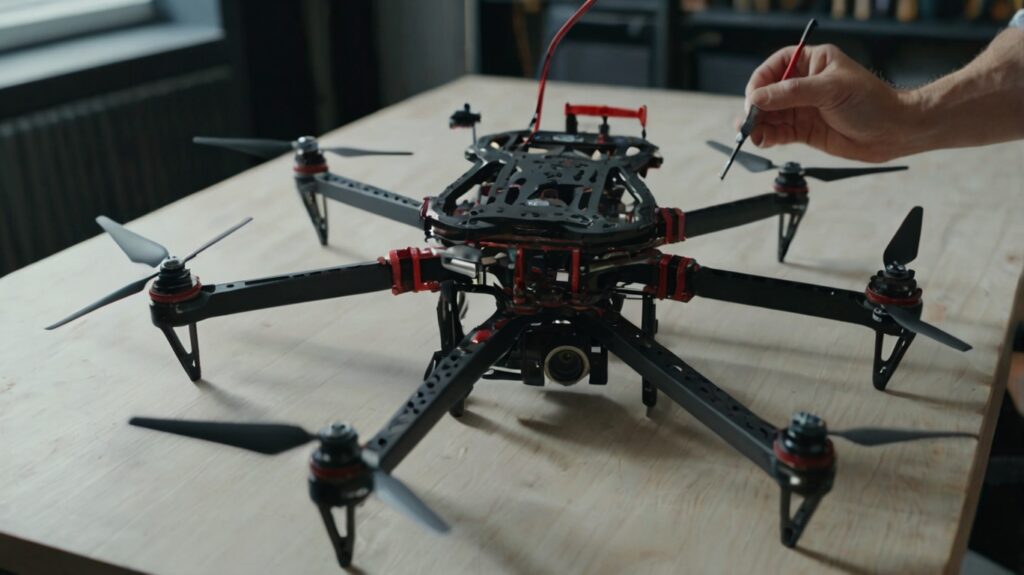

1. Building the Frame

  • Assemble the drone frame according to the manufacturer’s instructions. Ensure all screws are tightened, and the structure is sturdy. Take care to align the arms and central plate properly to ensure balance and stability during flight.
  • Use thread-locking adhesive on screws to prevent them from loosening due to vibrations during flight. This will improve durability and safety.

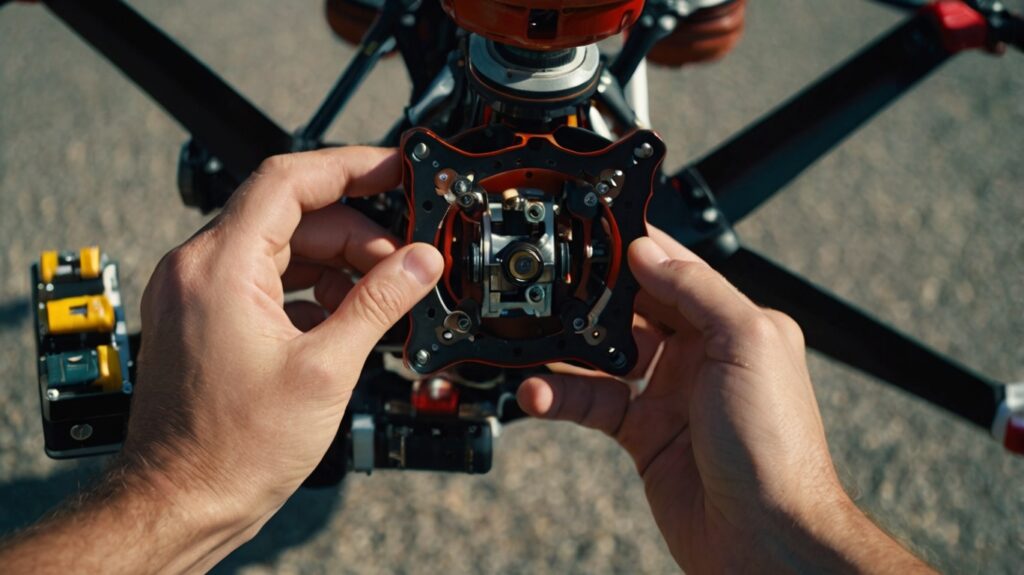

2. Installing Motors and Propellers

  • Mount the motors onto the designated positions on the frame using screws. Be sure to place the motors in positions matching the intended clockwise (CW) and counterclockwise (CCW) rotation directions. Improper placement can cause flight instability.
  • Attach propellers to the motors. Confirm the propellers match the rotation direction of each motor and secure them tightly using propeller nuts or quick-release mounts. Misaligned propellers may lead to reduced efficiency or failure to generate lift.
  • Double-check motor alignment and ensure they are firmly fixed to avoid issues during high-speed rotations.

3. Wiring the ESCs and Flight Controller

  • Connect each motor to its respective ESC by soldering the wires. Ensure the connections are solid, as loose wires can cause motor failure during operation.
  • Solder the ESCs to the PDB, ensuring proper polarity for power input. Organize the wiring neatly to avoid tangles and potential short circuits.
  • Connect the signal wires from the ESCs to the flight controller’s motor output pins. Follow the wiring diagram provided with your flight controller to ensure the correct sequence and polarity.
  • Apply heat shrink tubing over soldered connections for insulation and to reduce wear over time.

4. Connecting the Battery and PDB

  • Solder the battery connector (e.g., XT60 or XT90) to the PDB, ensuring proper polarity. A reversed connection can damage the electronics instantly.
  • Secure the battery to the frame using Velcro strips or straps. Position the battery near the drone’s center of gravity to ensure balanced flight.
  • Add a power switch or inline fuse to the PDB for additional safety during operation and maintenance.
  • Double-check all connections and ensure no exposed wires can cause short circuits.

Configuring the Drone

1. Calibrating the Flight Controller

  • Connect the flight controller to a computer and use software like Betaflight or Mission Planner to calibrate sensors and set up parameters.
  • Configure the gyroscope, accelerometer, and compass.

2. Setting Up the Remote Control and Receiver

  • Bind the remote control transmitter with the receiver.
  • Connect the receiver to the flight controller.
  • Map the transmitter’s channels to control the drone’s throttle, pitch, roll, and yaw.

Testing and Troubleshooting

Initial Power-On and Motor Test:

  • Power on the drone and test each motor individually using the flight controller software.
  • Check that the motors rotate in the correct direction and adjust the ESC wiring if necessary.

Common Issues and How to Fix Them:

IssueCauseSolution
Drone won’t take offInsufficient thrust or propeller issueCheck motor speed and prop orientation
Drone tilts uncontrollablyIncorrect calibration or motor setupRecalibrate sensors and verify wiring
Motors not spinningFaulty ESC or connectionCheck ESC connections and replace if needed

Tips for First-Time Flyers

Safety Guidelines:

  • Always fly in an open area away from people, animals, and obstacles.
  • Check local regulations for drone usage.
  • Wear safety goggles while testing.

Beginner Flying Techniques:

  • Practice basic maneuvers like takeoff, landing, and hovering before attempting advanced moves.
  • Start with low-speed settings until you’re comfortable.

Maintenance and Upgrades

How to Maintain Your Drone:

  • Regularly inspect components for wear and tear.
  • Clean the frame, motors, and propellers after each flight.
  • Store the battery properly to prevent swelling or damage.

Suggestions for Future Enhancements:

  • Add a camera for aerial photography.
  • Upgrade to GPS for autonomous flight modes.
  • Use higher-capacity batteries for extended flight time.

FAQs

How much does it cost to build a drone?

A basic drone can cost $150-$300, depending on the components used.

Do I need programming skills?

Basic programming may be required to configure the flight controller.

Can I add more features later?

Yes, drones are modular and can be upgraded with cameras, sensors, and more.

Conclusion

Building a drone from scratch is an enriching experience that blends creativity, technical skills, and hands-on work. With this guide, you have all the knowledge you need to create your first custom drone. Take the plunge, and embark on this exciting journey today!
